Löögi-, vee ja tolmukindel multimeeter METRAHIT OUTDOOR

Löögi-, vee ja tolmukindel multimeeter METRAHIT OUTDOOR

PT 1025A

Kategooriad: , , , Silt:

Kirjeldus

[:et]

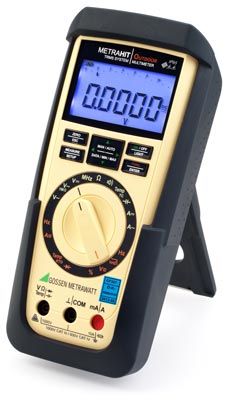

TRMS SYSTEM Multimeter, Extremely Rugged, Impact-Resistant, Water-Proof and Dust-Proof, and is Resistant to Extreme Temperatures

The OUTDOOR multimeter has been specially designed and manufactured to meet the challenges faced by engineers and technicians in adverse environments. It´s extremely rugged, impact-resistant, water-proof and dust-proof, and is resistant to extreme temperatures. Technology and scope of functions are the same as with the METRAHIt X-TRA.

Specific features of the OUTDOOR multimeter:

  • Special rugged design with shock and impact resistant housing, and additional rubber holster
  • Special “sand” color
  • Dust-proof: IP 6x
  • Water jets: IP x5
  • Patented, sealed blocking sockets



  • Resolution: ± 12,000 digits, 4½-place
  • 3 connector jacks with patented automatic blocking sockets (ABS)
  • TRMS AC and AC / DC function
  • Voltage measurement with a basic accuracy­ of ±0.05% (V DC)
  • Automatic and manual measuring range selection
  • Automatic storage of measured values: DATA / MIN / MAX
  • Large, light-blue illuminated display with extra-large characters (15 mm) and an analog bar graph for dynamic processes
  • Separate battery and fuse compartments
  • IP 52 protection against dust and water
  • Measuring categories: 1000 V CAT III and 600 V CAT IV
  • Made in Germany
  • DAkkS calibration certificate included
  • 23 multimeter functions
  • Voltage ACTRMS, voltage AC+DC TRMS,voltage DC, frequency (Hz, MHz), duty cycle, resistance, diode test, continuity test, capacitance, current ACTRMS, current AC+DC TRMS, temperature with Pt 100/1000 sensors and type K thermocouples
  • Auto-range current measurement from 100 μA (resolution: 10 nA) to10 A (16 A) via a single connector jack and a single fuse
  • Additional filter function and voltage measurement with reduced input­ impedance for limiting interference, e.g. for measurements at frequency­ converters
  • 540 kB data memory (15,400 measured values) for long-term measurements with data logger function
  • Power pack connector socket for operation without batteries
  • Infrared interface for communication with the PC
  • Rubber holster safeguards against shocks and impacts



https://www.gossenmetrawatt.com/english/produkte/metrahitoutdoor.htm

 [:]
