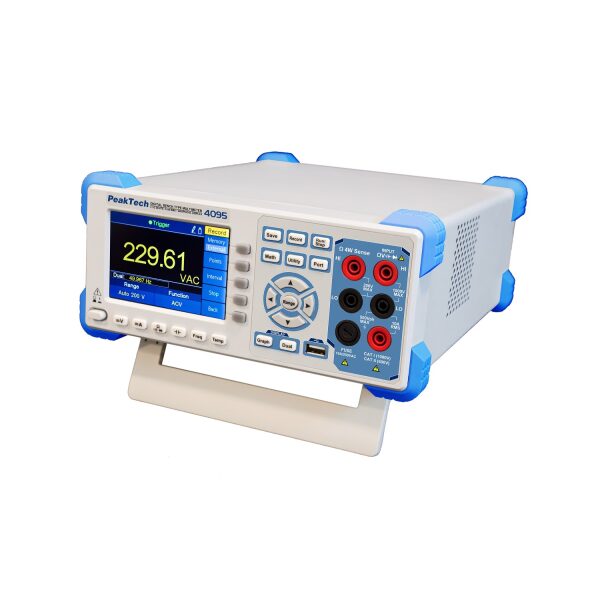

Tooted - PeakTech 4095 Graafiline lauamultimeeter 60000 ühikut

Newly developed precision bench multimeter with TFT graphic display for a high-resolution display of the measured values, curve, function graphics and much more, with up to 150 measurements / second. This model is equipped according to the latest technical standards and has a variety of special functions, such as the dual measurement of two different measurement functions, an internal and external data logger, histogram, dB, pass / fail, thermal resistor or thermocouple measurements, History curves, function graphics, average acquisitions or bar graphics. The versatile functions are completed by the True RMS (TrueRMS) measurements up to 100kHz. To control the PeakTech 4095 via the software or via SCPI protocol, the model has an USB port, RS-232 or a LAN interface for network integration.

• 4 1/2 digits (60000 counts) 4″ TFT-Graphics Display (480×320 Pixels)
• Up to 150 measurments per second
• Datalogger for up to 1 Mio. points (internal) or 100 Mio. Points (external) / 5ms Intervall
• True RMS measurement up to 100 kHz -depending on meas. function
• Automatic and manual range selection,AVG-, MIN/MAX and relative- function
• Diode/continuity test and 2- or 3-wire Resistance-Temperature Detector (RTD) or Themocouple measurement
• Temperature measurement compatible with: Type-B / E / J / K / N / R / S / T or PT100 / PT385
• Datalogger with internal storage (8 MB) or external USB-disc
• RS-232, LAN- network connection and USB interface
• Device-control and data acquisition via SCPI Protocol
• Safety: EN 61010-1; CAT I 1000 V / CAT II 600 V
• Accessories: power cable, Interface cable, CD-ROM, test-leads, temp. probe, and operation manual
