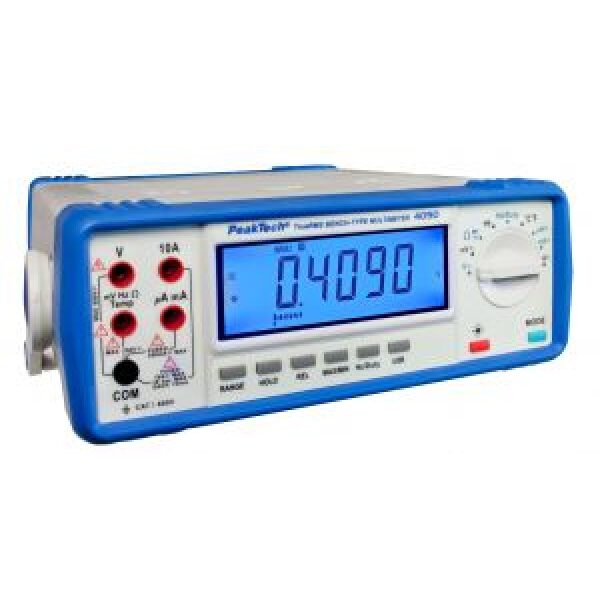

This high-precision digital bench type multimeter offers highly accurate measurements and has a large 4 ½ digit LCD display with backlight.
It can be used both in the laboratory in network operation, and in the mobile service in battery mode. In this way, the device offers a variety of applications.
The useful additional features such as True RMS measurement (True RMS), relative value measurement, MIN/MAX- and DATA-hold function round off the versatility of this device.
With the optical USB-interface and computer software the unit can display, draw record all test processes on a computer, the graphic software has an exclusive dynamic scale, which can describe very small changes of electric parameters.
In connection with a computer the bench type multimeter becomes a very useful measurement recorder
- 4 1/2-digit, 21 mm LCD-display (max. 22000 counts) with backlight
- True RMS
- Autoranging and manual range selection
- Relative function
- DATA-, MAX/MIN-HOLD
- Diode-, continuity-test
- USB-interface
- Safety: EN 61010-1; CAT I 600 V
- Accessories: case, power cord, USB-interface cable, software for Windows, test leads and operation manual
- Software Download: DMM Tool
| DCV | 220 mV/2,2/22/220/600 V; 10 μV; ± 0,05 % + 6 dgt. |
| ACV | 220 mV/2,2/22/220/600 V; 10 μV; ± 0,5 % + 30 dgt. Frequ.-range: 40Hz … 30kHz |
| DCA | 220/2200 μA/22/220 mA/10 A; 0,01 μA; ± 0,2 % + 15 dgt. |
| ACA | 220/2200 μA/22/220 mA/10 A; 0,01 μA; ± 0,8 % + 30 dgt. Frequ.-range: 40Hz … 5kHz |
| Ohm | 220 Ω/2,2/22/220 kΩ/2,2/22/220 MΩ; 10 mΩ; ± 0,1 % + 10 dgt. |
| Capacitance | 22/220 nF/2,2/22/220 μF/2,2/22 mF; 0,01 nF; ± 2,0 % + 5 dgt. |
| Frequency | 20 Hz ~ 220 MHz; 1 mHz; ± 0,06 %; + 10 dgt. |
| Temperature | -20°C ~ 1000°C; 0,1°C; ± 1,5 %; + 3°C |
| Operation Voltage | 100 ~ 120 V / 200 ~ 240 V AC; 50/60 Hz umschaltbar ext. 6 x 1,5V (AA / UM-3) Batterien |
| Dimensions (WxHxD) | 268 x 108 x 322 mm |
| Weight | 2,8 kg |
