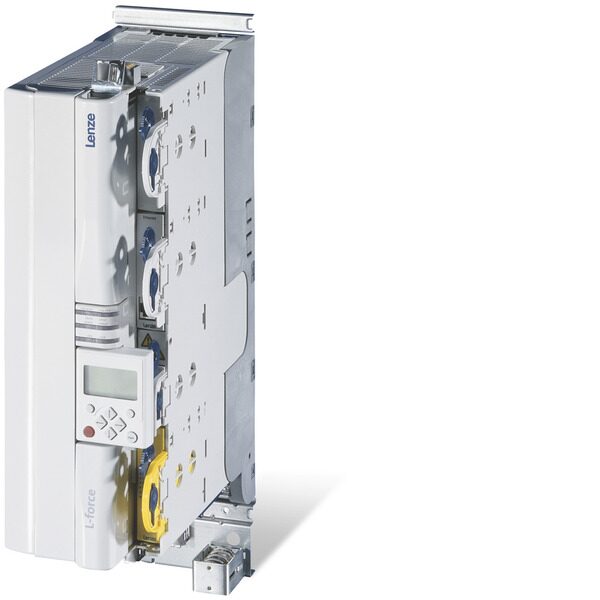

Servoinverter Lenze 9400 HighLine

Impressive results for demanding machine tasks and single- or multi-axis applications.

Servo Inverters for controlled, dynamic motion.


Performance data:

  • Single Drives: 0.50 to 321.84 Hp (0.37 to 240 kW), 1.5 to 460 A
  • Multi Drives: 0.50 to 40 Hp (0.37 to 30 kW), 1.5 to 59 A

Particularly suitable for: processing of continuous material in the packaging industry, perforating paper webs in the printing industry, winding in the textile industry, and storage technology in the field of intralogistics.


  • Connections: start/stop, analog inputs/outputs (2/2), freely programmable digital inputs/outputs (8/4)
  • Resolver and universal multi-encoder input
  • Communication: CANopen, DeviceNet, EtherCAT, Ethernet, EtherNet/IP, POWERLINK, PROFIBUS, PROFINET
  • Supports synchronous and asynchronous motors
  • Integrated brake management
  • Scalable memory thanks to multiple memory modules
  • Versatile and freely configurable technology functions, e.g. for table positioning, positioning controls, electronic gearboxes and cams
  • Scalable safety functions
