Peaktech 4096 graafiline lauapealne multimeeter 200 000 ühikut, datalogger

PT 1025A

700.95 € +km

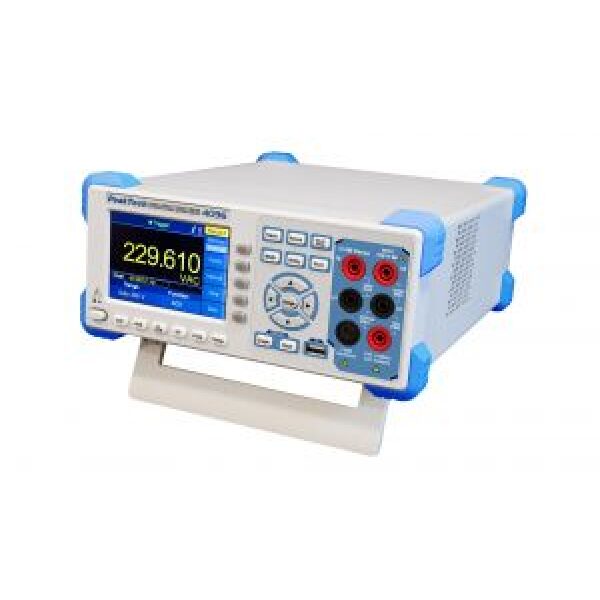

PeakTech® P 4096» Graphical bench multimeter, 200.000 counts & TFT

Kasutusjuhend: P 4095

Availability: Available on backorder Categories: , Tags: , ,

Description

Newly developed precision bench multimeter with TFT graphics-display for high-resolution presentation of the measured values, curves, functional diagrams and many more, up to 150 measurements / second. This model is equipped with a variety of special features such as dual measurement of two different measurement functions, internal or external data logger, histogram, dB, pass/fail, thermal resistors or thermocouple – Measurements, curves, function graphs, average views or bar graphs. The versatile functions are complemented by True RMS measurements up to 100kHz. For control via software or via SCPI protocol, the model has USB-, RS-232 or a LAN interface for the network connection.

  • 5 1/2 digits (200.000 counts) 4″ TFT-Graphics Display (480×320 Pixels)
  • Up to 150 measurments per second
  • Datalogger for up to 1 Mio. points (internal) or 100 Mio. Points (external) / 5ms Intervall
  • True RMS measurement up to 100 kHz -depending on meas. function
  • Automatic and manual range selection,AVG-, MIN/MAX and relative- function
  • Diode/continuity test and 2- or 3-wire Resistance-Temperature Detector (RTD) or Themocouple measurement
  • Temperature measurement compatible with: Type-B / E / J / K / N / R / S / T or PT100 / PT385
  • Datalogger with internal storage (8 MB) or external USB-disc
  • RS-232, LAN- network connection and USB interface
  • Device-control and data acquisition via SCPI Protocol
  • Safety: EN 61010-1; CAT I 1000 V / CAT II 600 V
  • Accessories: power cable, Interface cable, CD-ROM, test-leads, temp. probe, and operation manual
DCV 200mV/2/20/200/1000 V; ± 0,0015 % + 0.0005
ACV 200 mV/2/20/200/750 V; ± 0,01 % + 0.005
ACV- TRMS Frequency 20 Hz – 100 kHz
DCA 200μA/2/20/200 mA/2/10 A; ± 0,002 % + 0.001
ACA 20/200mA/2/10 A; ± 0,015 % + 0.005
ACA- TRMS Frequency 20 Hz – 10 kHz
Ohm 200 Ω/2/20/200 kΩ/2/10/100 MΩ; ± 0,0030 % + 0.0005
Frequency 20 Hz … 1 MHz ± 0,002 % + 0.001
Capacitance 2/20/200/2000 nF/200/10000 μF; ± 0,02 % + 0.001
Temperature -200°C … +660°C (RTD) ; + 0.08% + 0.002 / -200°C … +1372°C (Typ-K); ± 0,5°C
Operation voltage 110 V/240 V; 50/60 Hz switchable
Dimension (WxHxD) 235 x 110 x 295 mm
Weight 3 kg
EAN-13 4250569404054
