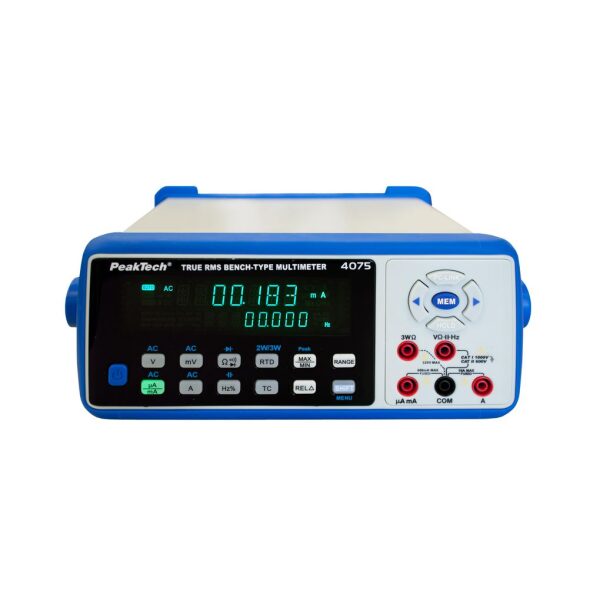

Peaktech 4075 digitaalne lauapealne multimeeter, 63000 ühikut, datalogger, RS-232, LAN, Bluetooth

Peaktech 4075 digitaalne lauapealne multimeeter, 63000 ühikut, datalogger, RS-232, LAN, Bluetooth

PT 1025A

739.07 € +km

PEAKTECH 4075 Desktop multimeter, 4 5/6-digit, USB, LAN, Bluetooth

Availability: Saadaval järeltellimisel SKU: 739.07 Kategooriad: , Sildid: , ,

Kirjeldus

High-precision digital bench multimeter according to the latest technical standards equipped with a 4 5/6-digit dual display (max. 63000). The versatile functions are completed by the true rms measurement, the temperature and the 3-wire resistance thermocouple measurement. The PC software for data queryand control, integrated data logger function via the internal memory, USB stick or an external SD memory card, wireless Bluetooth connection to the PC, integration into the company network via the LAN network connection, as well as the USB connection enable versatile applications.S

  • 4 5/6 digit, 13 mm dual VFD display; Max. 63000
  • True RMS measurement
  • Automatic and manual range selection, PEAK, MIN / MAX and relative value measurement
  • Diode test / continuity test and 2- or 3-wire resistance thermocouple measurement
  • Temperature measurement compatible with: Type-K, J, E, N, T, B, R, S, PT 100/500/1000
  • Data logger function with internal memory, USB stick or SD card
  • Bluetooth, RS-232, LAN & USB interface
  • Control and data query via PC software
  • Safety: EN 61010-1; CAT II 600 V
  • Accessories: power cord, USB interface cable, RS-232 interface cable, Bluetooth adapter set, software for Windows, test leads, temperature sensor, temperature adapter and manual
DCV 60/600 mV/6/60/600/1000 V; 1 μV; ± 0,03 % + 6 dgt.
ACV 600 mV/6/60/600/1000 V; 10 μV; ± 0,7 % + 80 dgt.
DCA 600/6000 μA/60/600 mA/ 6/10 A; 0,01 μA; ± 0,15 % + 10 dgt.
ACA 600/6000 μA/60/600 mA/6/10 A; 0,01 μA; ± 0,8 % + 80 dgt.
Ohm 600 Ω/6/60/600 kΩ/6/60 MΩ; 0,01 Ω; ± 0,1 % + 5 dgt.
Frequency 4 Hz … 60 MHz (square), 4 Hz … 60 kHz (sine); 1 Hz; ± 0,01 % + 10 dgt.
Capacitance 6/60/600 nF/6/60/600 μF/6/60 mF; 0,1 pF; ± 2 % + 150 dgt.
Temperature -200°C … +1370°C (Typ-K); 0,1°C; ± 0,7 % (TC) ± 0,7°C
Operation voltage 110 V/240 V; 50/60 Hz switchable
Dimension (WxHxD) 240 x 100 x 350 mm
Weight 2,5 kg
EAN-13 425056402234



Lisainfo

Brand

PeakTech
