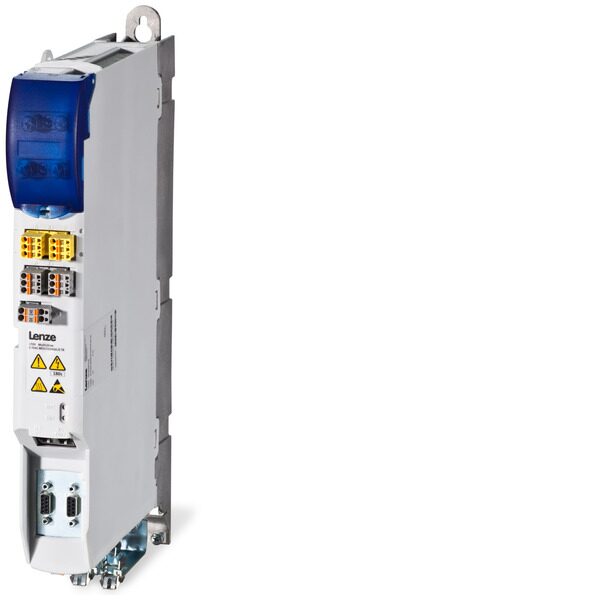

Servoinverter Lenze i700

Lenze inverter i950 Lenze servo inverter i950 0,55 kW 400V I95AE155F1AV102020

Generation Easy for multi-axis applications.

Servo inverters for controlled, dynamic motion.

Categories: , Tag:

Description

Performance data of supply modules:

  • Line voltage: 3 AC 400/480 V, 0.5 to 60 Hp (0.37 to 45 kW), 1.1 to 88 A

Performance data of axis modules:

  • Single axis: 1.0 to 20.0 Hp (0.75 to 15 kW), 2.5 to 32 A
  • Multi axis: 1.0 to 10 Hp (0.75 to 7.5 kW), 2.5 to 16 A

Particularly suitable for: handling and packaging machines and robotic applications

Advantages:

  • Connections: digital inputs/outputs (2/0)
  • Resolver and encoder feedback
  • Communication: EtherCAT
  • Axis modules capable of multiple overloads for peak output currents between 5 and 64 A, double axes up to 32 A
  • The servo inverter for Controller-based Automation in conjunction with the various types of  Controllers
  • CIA 402 operating modes (position, velocity, torque-control, velocity-mode)
  • STO safety-function
