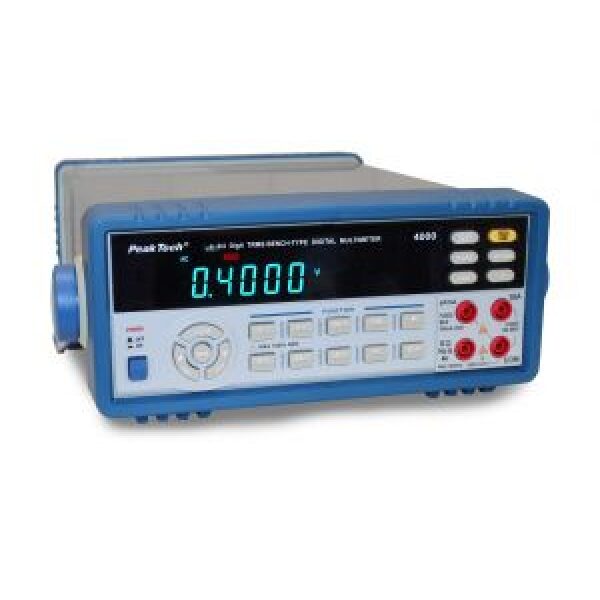

PeakTech 4000 Digitaalne lauapealne multimeeter 53000 ühikut, RS-232 & USB

PeakTech 4000 Digitaalne lauapealne multimeeter 53000 ühikut, RS-232 & USB

PT 1025A

Kategooriad: , , ,

Kirjeldus

[:et]

High accurate and stable digital bench type multimeter with a 24 bit A/D converter, controlled by a single-chip computer. It can operate 10 measurement functions, not only DC, AC, rms, but DC and AC mixture signals RMS can measured for 1000 V or 10 A. The resolution of DCV is 1 µV and the frequency band of voltage or current is about 20 kHz. The multimeter is also a frequency counter, which can test pulse frequency over 2 MHz or linear frequency more than 200 kHz, including the frequency current. The measurement of 50 MΩ, resistor 5000 µF capacitor, maximum/minimum, averrage, relative value, power dB, diode continuity and memory function up to 30 full screen for saving data are useful for engineers. This bench type multimeter is controlled and calibrated by software, so that it’s stability for long time is guaranteed. With the optical USB-interface and computer software the unit can display, draw record all test processes on a computer, the graphic software has an exclusive dynamic scale, which can describe very small changes of electric parameters. In connection with a computer the bench type multimeter becomes a very useful measurement recorder and the protection functions against some error operations get it’s safety characteristic guaranteed.

  • 4 ¾-digit, 15 mm VFD-display with additional secondary display and function symbols (max. 53000 counts)
  • True RMS
  • Autoranging / manual range selection; relative function and dBm-measurement
  • Diode/continuity and logic-test
  • Misconnection alarm
  • RS-232 Interface and USB-converter
  • Safety: EN 61010-1; CAT II 1000 V
  • Accessories: case, power cord, USB-interface cable, software for Windows, test leads, test-clips and operation manual
  • Software Download: DMM Tool
DCV 50/500 mV/5/50/500/1000 V; 1 µV; ± 0,03 % + 6 dgt.
ACV 50/500 mV/5/50/500/1000 V; 1 µV; ±±0,5 % + 40 dgt.
DCA 500/5000 µA/50/500 mA/5/10 A; 0,01 µA; ± 0,15 % + 10 dgt.
ACA 500/5000 µA/50/500 mA/5/10 A; 0,01 µA; ± 0,75 % + 10 dgt.
Ohm 500 Ω/5/50/500 kΩ/5/50 MΩ; 10 mΩ; ± 0,1 % + 5 dgt.
Capacitance 50/500 nF/5/50/500/5000 µF; 0,01 nF; ± 1,0 % + 10 dgt.
Frequency 5 Hz ~ 200 kHz; 1 mHz; ± 0,006 %; + 4 dgt.
Operation voltage 100 ~ 120 V / 200 ~ 240 V AC; 50/60 Hz switchable ext.
Dimension (WxHxD) 260 x 100 x 320 mm
Weight 3,1 kg
EAN-13 4250569400995
[:]
